Why Advanced Liquid Cooling Is Important?
Advanced Rack-Level Cooling for High-Density Computing
In today’s high-performance computing environments, traditional data center cooling approaches often struggle to manage the intense heat generated by modern servers. Rear door heat exchangers represent one of the most efficient and practical solutions for addressing these thermal challenges, particularly in high-density deployments.
What Is a Rear Door Heat Exchanger?
A rear door heat exchanger is a sophisticated thermal management device mounted directly on the back of server racks. These liquid-cooled units capture and neutralize heat at the exact point where servers expel it, creating a remarkably efficient cooling pathway.

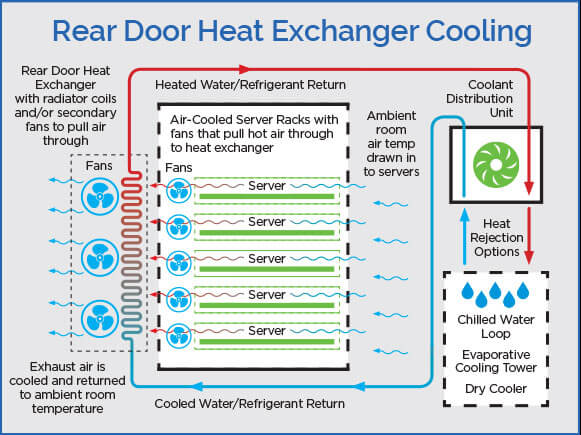

Unlike traditional room-based cooling methods that must condition the entire data center space, RDHx systems target heat directly at the source:
- Servers push warm exhaust air toward the rear of the rack
- This air passes through the RDHx, which contains a heat exchanger with liquid-filled coils
- The liquid coolant (typically water or a water-glycol mixture) absorbs the heat from the passing air
- The now-cooled air returns to the data center at or near room temperature
- The heated liquid is circulated to facility cooling systems, where the heat is rejected
This targeted approach dramatically improves cooling efficiency while simplifying overall thermal management.
How Rear Door Heat Exchangers Work
The RDHx functions as a heat transfer device that replaces or attaches to the standard rear door of a server rack. As servers operate, they generate heat that must be removed to maintain optimal performance. The RDHx captures this heat through several key mechanisms:
Passive vs. Active RDHx Systems
Passive Systems
- Rely on the server fans to push air through the heat exchanger
- Require no additional power at the rack
- Operate silently with no moving parts at the door
- Typically support cooling loads up to 35kW per rack
Active Systems
- Incorporate supplemental fans to enhance airflow
- Provide greater cooling capacity for extreme density deployments
- Support cooling loads exceeding 50kW per rack
- Offer more consistent performance regardless of server configurations
Cooling Circuit Integration
The liquid circuit within the RDHx connects to a broader cooling distribution system, which may include:
- Cooling Distribution Units (CDUs) that regulate temperature, pressure, and flow
- Facility water systems or dedicated cooling loops
- Chillers or dry coolers for final heat rejection
- Water treatment systems to ensure optimal coolant quality
Triton Thermal engineers each component of this system to ensure seamless integration, maximum efficiency, and reliable operation.
Benefits of Rear Door Heat Exchangers in Modern Data Centers
Space Optimization and Simplified Infrastructure
- Eliminate Containment Requirements: Remove the need for complex hot/cold aisle arrangements.
- Higher Compute Density: Deploy more processing power within the same physical footprint
- Reduced Mechanical Space: Minimize the facility space dedicated to cooling equipment
- Simplified Airflow Management: Reduce or eliminate raised floors, ceiling plenums, and other airflow infrastructure
Superior Cooling Capacity for High-Density Computing
- Handle Extreme Heat Loads: Effectively cool racks exceeding 30-50 kW, meeting the demands of intensive AI and HPC workloads.
- Eliminate Hot Spots: Prevent thermal issues at the source rather than trying to compensate with room cooling.
- Maintain Optimal Temperatures: Keep server inlet temperatures consistent regardless of workload variations.
- Support Next-Gen Hardware: Cool the latest high-TDP processors and accelerators without thermal throttling.
Improved Energy Efficiency and Lower PUE
- Dramatic Reduction in Cooling Energy: Lower overall Power Usage Effectiveness (PUE) by 30-50%
- Minimize Air Conditioning Requirements: Reduce or potentially eliminate reliance on traditional CRAC/CRAH units.
- Higher Temperature Cooling Water: Operate with warmer water temperatures than traditional cooling, increasing efficiency
- Free Cooling Compatibility: Enable economizer operation in appropriate climates, further reducing energy consumption
Exceptional Scalability and Deployment Flexibility
- Incremental Implementation: Add cooling capacity rack by rack as needs evolve
- Retrofit Compatibility: Easily integrate into existing data centers without disruptive infrastructure changes
- Hybrid Cooling Support: Complement other cooling technologies like direct liquid-to-chip or immersion solutions
- Phased Migration Path: Transition gradually from air cooling to liquid cooling strategies
Sustainability and Environmental Benefits
- Reduced Carbon Footprint: Lower energy consumption translates directly to decreased emissions.
- Water Conservation Options: Designs that minimize or eliminate water consumption
- Extended Infrastructure Lifespan: Maximize the usable life of existing data center facilities
- Green Building Certification Support: Contribute to LEED, Energy Star, and other sustainability certifications
Enhanced Support for Specialized Computing Workloads
- AI and Machine Learning Optimization: Ideal cooling for GPU and TPU-intensive workloads
- HPC Cluster Performance: Support the thermal demands of tightly-coupled high-performance computing
- Financial Services Computing: Enable high-frequency trading and financial modeling systems
- Scientific and Research Computing: Provide thermal headroom for simulation and modeling applications
Operational Cost Reduction
- Lower Energy Expenses: Significantly reduce electricity consumption for cooling
- Decreased Maintenance Requirements: Simplify cooling infrastructure with fewer moving parts
- Extended Equipment Lifespan: Prevent thermal stress on IT hardware, reducing failure rates
- Optimized Water Usage: Water-efficient options minimize consumption in water-sensitive locations
Why HPC and AI-Focused Data Centers Choose RDHx Solutions
Benefits of RDHx
High-performance computing environments present unique cooling challenges that Rear Door Heat Exchangers are specifically designed to address:
- Exceeding Traditional Limits: High-density compute environments routinely generate heat loads beyond what conventional air cooling can handle
- Cost-Effective Scaling: RDHx provides an economical path to increase compute capacity without requiring massive facility upgrades
- Future-Proof Infrastructure: The modular nature of RDHx systems allows for adaptation to increasing server densities and new technologies.
- Hybrid Cooling Optimization: RDHx can work in tandem with other cooling technologies to create comprehensive thermal solutions
Implementation & Best Practices
For optimal RDHx performance, Triton Thermal addresses several key factors during design and deployment:
- Door Clearance and Service Access: Ensuring proper space for door operation and maintenance
- Coolant Distribution Infrastructure: Designing optimal piping layouts and connection points
- Water Quality Management: Implementing appropriate filtration and treatment
- Condensation Prevention: Engineering systems to prevent condensation on cooling surfaces
- Monitoring and Control Integration: Connecting RDHx systems to data center infrastructure management (DCIM) platforms
- Failover and Redundancy Planning: Ensuring cooling continuity during maintenance or component failures
The Strategic Value of RDHx
Implementing Rear Door Heat Exchangers delivers strategic advantages beyond thermal management:
- Computing Capacity Growth: Enable expansion of AI, ML, and HPC workloads within existing facilities
- Operational Cost Reduction: Realize significant savings through improved cooling efficiency
- Environmental Impact Improvement: Support sustainability goals with lower energy and water consumption
- Infrastructure Modernization: Update aging facilities to support next-generation computing demands
The Triton Thermal Advantage for RDHx Implementation
Our engineering team evaluates every aspect of your cooling needs, from individual rack heat profiles to facility-wide thermal management strategies, ensuring the most efficient and reliable solutions made for your application.
Triton Thermal brings specialized expertise to every rear door heat exchanger deployment
- Custom Engineering: We design solutions specifically for your unique infrastructure and computing requirements
- Vendor-Agnostic Approach: We select the optimal components from leading manufacturers to ensure the best results
- System Integration: We ensure seamless connection with your broader facility systems
- Comprehensive Deployment: From initial assessment through installation and commissioning
- Ongoing Optimization: Continuous monitoring and performance tuning to maximize efficiency
